Observation precedes explanation. Plausible ≠ Correct.

What xPRIMEray Is

xPRIMEray is a renderer that traces curved light — not as a visual effect, but as physics. Every pixel is computed by integrating a ray's actual trajectory through a spatially varying medium. The ray bends because the medium curves it, the same way light bends in a gravitational lens or a gradient-index optical fibre.

The engine solves the eikonal transport equation:

\[\dot{\mathbf{x}} = \frac{\mathbf{p}}{n(\mathbf{x})}, \qquad \dot{\mathbf{p}} = \nabla n(\mathbf{x})\]

where \(n(\mathbf{x})\) is the refractive index field. Rays are curved primitives. The renderer does not fake bending with post-process lens shaders. It solves the correct path.

What it is not: xPRIMEray is not a physics simulator or a general-purpose renderer. It is a research instrument — specifically, a transport observatory for studying how curved ray paths affect what an observer sees, and for validating that the computed paths are actually correct.

Why Curved Transport Matters

A renderer that assumes straight rays will compute the wrong image whenever the medium bends light. The error is not always obvious. Two images that look similar can have dramatically different ray classifications underneath. The classic failure: a render that looks plausible but has zero correctly resolved pixels.

This is not hypothetical. Chapter 3 — Hermetic Closure demonstrates it directly: at integration budget=32, a rendered image of a curved scene looks reasonable. The validation HUD shows 0.0% closure — every pixel is unresolved budget noise, not a transport result.

Curved transport matters because:

  1. The images are different. At an off-axis observer pose, curved and straight transport classify 23.8% of pixels differently — most of them geometry hits that become escapes under GRIN deflection.
  2. The difference is measurable. xPRIMEray quantifies the disagreement per pixel, per classification class, per transition direction.
  3. Incorrect renders look correct. Without a validation layer (hermetic closure contract, Validation HUD, oracle reference), there is no reliable way to distinguish a correct curved render from a plausible-but-wrong one.

What to Look at First

If you have 20 minutes, take the Observatory Tour below.

If you want to go deeper, explore by role:

Start with the Observatory Atlas. Follow the five-chapter arc from Dual Reality through the Cathedral Probe. Each chapter is self-contained and builds on the previous.

The most visual entry: Chapter 1 — Dual Reality. Toggle the Reference Reality inset and see the wormhole rendered twice simultaneously.

Start with the Validation Philosophy to understand the correctness framework. Then go to Chapter 4 — Coherence Basin for the transport stability map and Chapter 5 — Cathedral Probe for the diagnostic methodology.

The architecture paper is the canonical technical reference: Cathedral Probe Architecture.

Start with the Feature Index and System Architecture. The Sample Worlds design proposals specify the runtime world system that needs building. The Overlay Master List is the overlay implementation reference.

This site is the technical observatory. The public-facing exhibit is MisterY Labs — the curated artifact and interactive world portal. Links from here go to the research evidence. Links from MisterY Labs go here for the underlying data.

The 20-Minute Observatory Tour

Three chapters that communicate the essence of xPRIMEray without background.

Step 1 — Dual Reality (8 min)

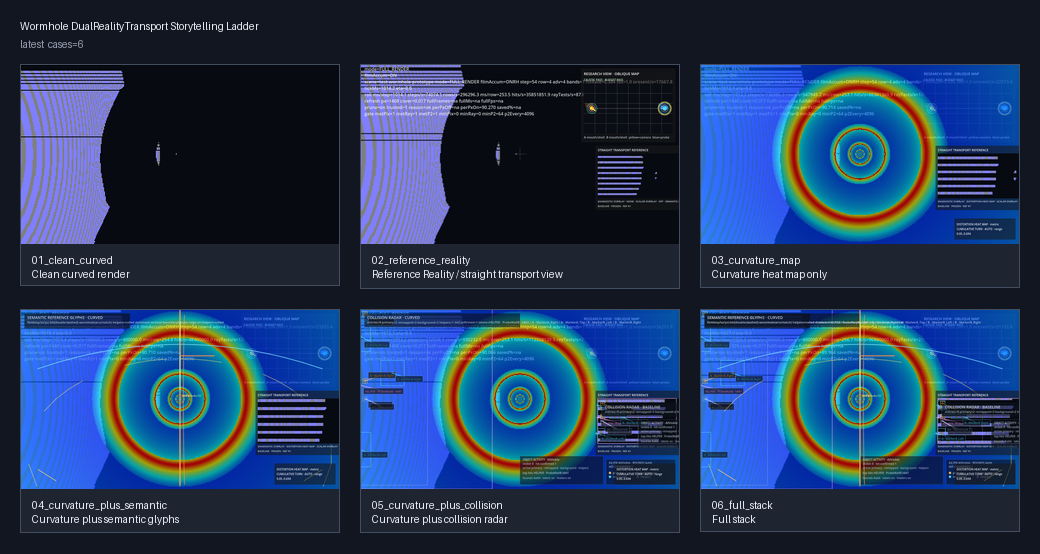

Wormhole Dual Reality — six-panel sequence

Six frames: bare curved render → reference reality inset → curvature heat map → semantic glyphs → collision radar → full stack.

What you see: A wormhole rendered twice — once with curved transport, once with straight — so the bending is directly visible as the gap between the two.

What this shows: The curvature is not a visual effect. It is geometry: the portal boundary ring glows in the heat map because that is where the transport model produces the most ray deflection, not because it was painted that way.

Where to go: Chapter 1 — Dual Reality

Step 2 — Observer Disagreement (7 min)

Observer Disagreement Hero — curved GRIN vs straight vs delta, labeled

Curved GRIN (left) · straight reference (center) · disagreement delta (right). Blue pixels: geometry hits that became escapes under curved transport. 8.6:1 asymmetry — the GRIN field is defocusing, not focusing.

What you see: 30,839 pixels that classify differently between curved and straight transport at the same camera position.

What this shows: Curved transport is not just different-looking — it is measurably different. The dominant transition (27,619 pixels) is geometry-hit → escaped: the GRIN field deflects rays away from surfaces they would otherwise have hit. This is a measurable, directional effect.

Where to go: Chapter 2 — Observer Disagreement

Step 3 — Hermetic Closure (5 min)

Hermetic Closure Hero — budget=32 (0% closure) vs budget=700 (100% closure) side by side

Left: budget=32 — 0.0% closure, every pixel is unresolved noise. Right: budget=700 — 100.0% closure, every pixel real. The images look identical. The labels are the proof.

What you see: A render that looks correct. The Validation HUD shows 0% closure — every pixel is unresolved budget noise.

What this shows: Plausible ≠ Correct. A renderer that runs out of integration steps produces noise that passes casual visual inspection. The only reliable detector is the closure metric.

Where to go: Chapter 3 — Hermetic Closure

Where the Tour Goes Next

The 20-minute arc covers perception → measurement → validation. Two more chapters complete the picture:

Repository Structure

Location What it is
output/ Active lab bench: all experiment outputs, logs, renders, validation runs
misterylabs_artifacts/ Curated export layer: promoted images, cards, datasets, manifest
sample_worlds/ Interactive world design proposals
observatory_atlas/ Atlas chapters, manifest, dependency graph
Docs/ This site's source — research documentation, specs, papers

Motto

Observation precedes explanation. Plausible ≠ Correct.

Every page in this observatory is grounded in a specific experimental result. Where a claim is a hypothesis, it is labeled as such. Where an image is a visualization rather than a validation, the caption says so. The transport oracle does not assert physics beyond its implemented renderer and diagnostics.

Portable Observatory (public ontology)

For the curated GitHub Pages lane that separates Display Modes from sealed Instruments, start here:

Historical chapter tours (Atlas, Gallery, Glowing Heart) remain available; newer docs prefer public terms over bare film/Cathedral first-run language.
